Overview

The medical-grade 3-seal bag is engineered for pharmaceuticals, over-the-counter (OTC) drugs, and home care products. Its circular transparent window allows consumers to see the product inside—critical for building trust in health-related items.

With three-side sealing, it provides excellent protection against moisture, bacteria, and contamination. The packaging supports full-color printing of Chinese instructions, dosage information, and brand logos, making it ideal for domestic and export markets.

Used by hospitals, pharmacies, and e-commerce platforms selling health products.

---

Product Features

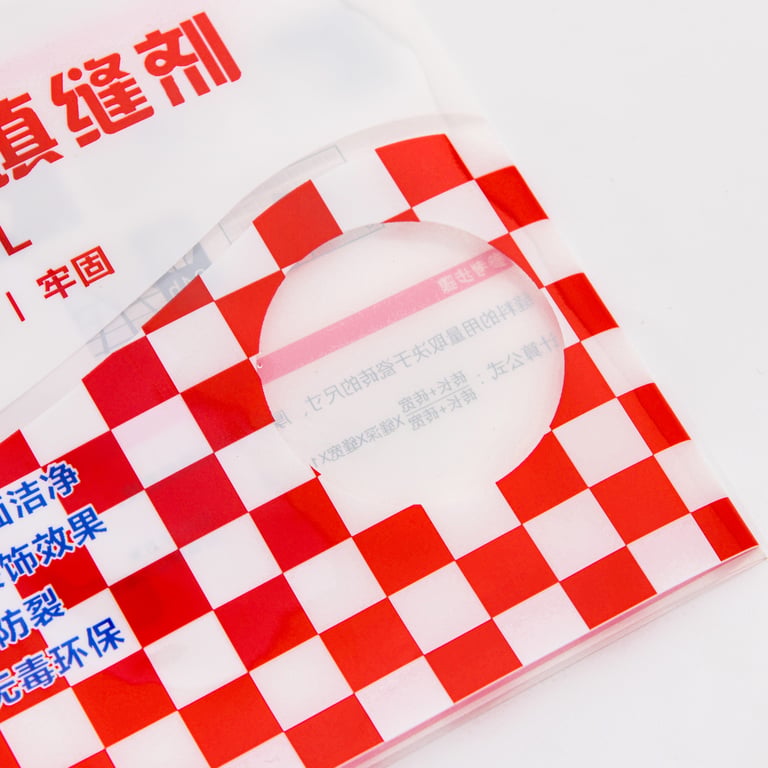

• Transparent Window: Circular or oval-shaped clear film (up to 40mm diameter)—allows visual inspection without opening.

• Material Options:

  • Standard Barrier: PET/PE (for non-sensitive products)
  • High Barrier: PET/AL/PE (blocks O₂, moisture, light—ideal for sensitive formulations)
  • Sterile Grade: Gamma-ray sterilizable, meets ISO 11607 standards

• Sealing Technology: Three-side heat seal with reinforced edges—resists tearing during handling.

• Print Excellence: Full-color offset printing; supports Chinese characters, English text, barcodes, and regulatory symbols.

• Finishing Options: Peelable seal, tear notch, hang hole, or child-resistant closure.

• Certifications: FDA-compliant, CE-marked, ISO 13485 (medical device), REACH-compliant materials.

---

Product Advantages

• Consumer Trust: Transparent window shows product integrity—reduces return rates.
• Regulatory Compliance: Meets Chinese GMP, US FDA, and EU MDR requirements.
• Brand Visibility: Full surface branding with bilingual labels enhances professionalism.
• Hygiene Protection: Sealed environment prevents contamination during storage and transport.
• Automation Ready: Compatible with high-speed HFFS lines at speeds up to 100 bags/min.

---

Quality Assurance

• Seal Strength: ≥25 N/mm (tested per ASTM F88)
• Moisture Barrier: WVTR ≤3 g/m²/24h (with PE liner)
• Oxygen Barrier: OTR ≤2 cc/m²/day (with AL layer)
• Sterility Test: Passes autoclave or gamma irradiation (if required)
• Color Accuracy: ΔE ≤3 for critical colors
• Production Control: In-line inspection, metal detection, and batch traceability via QR code.

---

Product Specifications

<span style={{color: "var(--color-fg-default)"}}>Application	<span style={{color: "var(--color-fg-default)"}}>Material	<span style={{color: "var(--color-fg-default)"}}>Thickness	<span style={{color: "var(--color-fg-default)"}}>Typical Size (W×H)	<span style={{color: "var(--color-fg-default)"}}>Print Area	<span style={{color: "var(--color-fg-default)"}}>Max Capacity
<span style={{color: "var(--color-fg-default)"}}>Adhesive Patch	<span style={{color: "var(--color-fg-default)"}}>PET/PE	<span style={{color: "var(--color-fg-default)"}}>80 µm	<span style={{color: "var(--color-fg-default)"}}>80×100 mm	<span style={{color: "var(--color-fg-default)"}}>Front Only	<span style={{color: "var(--color-fg-default)"}}>1-2 pcs
<span style={{color: "var(--color-fg-default)"}}>Medicated Ointment	<span style={{color: "var(--color-fg-default)"}}>PET/AL/PE	<span style={{color: "var(--color-fg-default)"}}>90 µm	<span style={{color: "var(--color-fg-default)"}}>60×80 mm	<span style={{color: "var(--color-fg-default)"}}>Front + Back	<span style={{color: "var(--color-fg-default)"}}>5-10 g
<span style={{color: "var(--color-fg-default)"}}>First Aid Kit	<span style={{color: "var(--color-fg-default)"}}>PET/PE	<span style={{color: "var(--color-fg-default)"}}>70 µm	<span style={{color: "var(--color-fg-default)"}}>120×150 mm	<span style={{color: "var(--color-fg-default)"}}>Full Surface	<span style={{color: "var(--color-fg-default)"}}>1 kit
<span style={{color: "var(--color-fg-default)"}}>Anti-Fungal Cream	<span style={{color: "var(--color-fg-default)"}}>PET/VMPET/PE	<span style={{color: "var(--color-fg-default)"}}>100 µm	<span style={{color: "var(--color-fg-default)"}}>50×70 mm	<span style={{color: "var(--color-fg-default)"}}>Front Only	<span style={{color: "var(--color-fg-default)"}}>3-5 g
<span style={{color: "var(--color-fg-default)"}}>Custom Options	<span style={{color: "var(--color-fg-default)"}}>Custom Material	<span style={{color: "var(--color-fg-default)"}}>Customizable	<span style={{color: "var(--color-fg-default)"}}>Customizable	<span style={{color: "var(--color-fg-default)"}}>Customizable	<span style={{color: "var(--color-fg-default)"}}>Customizable

Note: Custom sizes, colors, and liners available.
